PLC control with touch screen
CSK linear guide

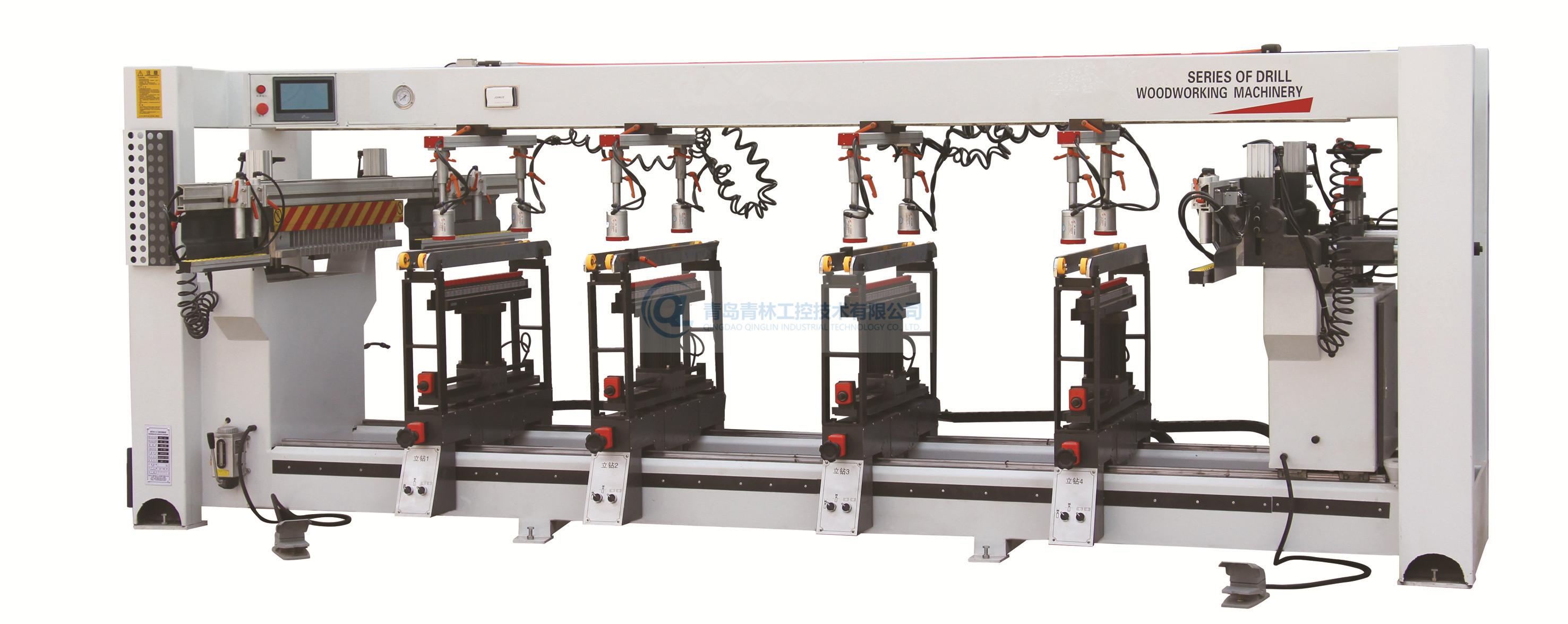

Functions are as 1set 6 rows boring machine with 2sets 3 rows boring machine
Max.drill dia:35mm
Max.drill depth:60mm
Distance between 2 vertical drill holes:130-2500mm
Number of drill bits:6x21pcs
Motor:1.5kwx3,2840rpm
Air pressure:0.6-0.8mpa
Outline size:4500x2500x1530mm
Contact: Mark Wu
Phone: +86-13864805556
Tel: +86-532-85721439
Email: mark810510@163.com
Add: Licang Industrial park,Qingdao city,China
